Balanced Wave Conveyor Belt

The Balanced Wave Conveyor Belt is a top-quality industrial belt conveyor that is perfect for various applications. Made from either mild steel or stainless steel material, this conveyor belt is built to last and can handle heavy loads with ease. Its silver color adds a sleek and modern touch to any industrial setting. This belt conveyor type is designed to transport a wide range of products smoothly and efficiently while reducing the risk of product damage. The balanced wave design ensures that the conveyor belt moves evenly without any jerks or bumps, making it ideal for delicate products. With a warranty included, you can trust this conveyor belt to perform to your expectations.

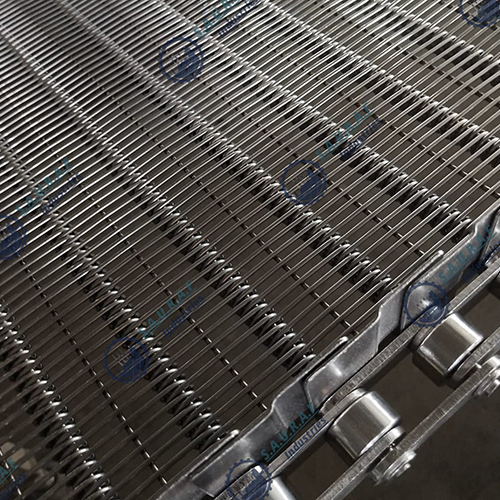

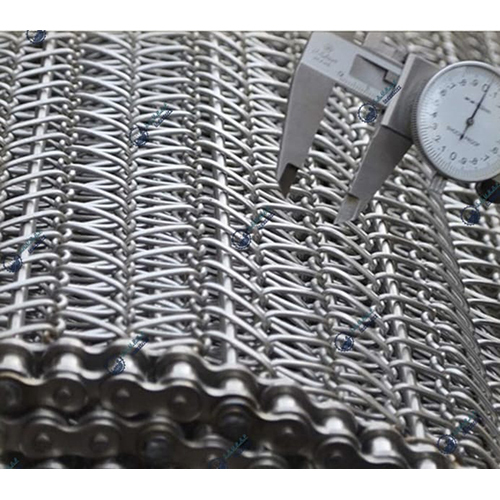

Radius conveyor belt also known balanced wave belt because it composed of balanced weaved spiral mesh, straight cross rods and chain links on both sides.

They are suitable for a wide range of applications, constructions and process conditions throughout the world. Radius belts offer a smooth continuous product flow running dependably year after year without damaging fragile and delicate products.

Features :

Stable design for smoothly, dependably and gentle movements. Money saving by securing the quality of products and reducing waste. Close-structure structure and ideal for high tensile load. Suitable for radius system, spiral, curved or straight conveyors. Wide temperature range from -196 deg C to +275 deg C. Complying with FDA standards.

Applications :

• Food cryogenic cooling and freezing.
• Vegetable blanching.
• Vegetable blanching.
• Drying installations.
• Product lifting conveyors.
• Baking or pasteurizing systems.
• Conveyor machines.
• Frying, refrigeration and cleaning facilities.

Four main types of edges :

Radius conveyor belts are available in four different edges including traditional fabricated & welded ends, U-shaped chain link ends, roller chain link ends with or without side plates.

Traditional fabricated & welded ends :

As your requirements, radius conveyor belts can be The cold butting and welds which with minimum heats to ensure the structure of cross rods. 7 welded or fabricated to form a stable straight or curved convey system. connect the chain links and rods are welded toughly with minimum heats to ensure the structure of cross rods.

Specifications:

• Material: stainless steel, AISI 304 or AISI 316; steel unprocessed, tin plated, zinc plated; special steel for high temperature ranges.
• Width: up to approximately 5300mm.
• Round wire spirals: diameter 0.80 to 5.00mm.
• Flat wire spiral: cross 1.2 x 0.7mm to 6 x 3mm.
• Cross bars: diameter 1.40 to 8mm.
• Cross bar pitch: 6.0 to 52.0mm.
• Speed: less than 1m per minute to about 20m per minute. (higher speed may affect the longevity of the belt)
• For U-shaped chain link ends, three strength can be provided - normal chain link type (2mm in thickness), heavy duty chain link (3mm in thickness), heavy duty chain link with double reinforcing plates (3mm in thickness). Meanwhile, as your request, radius conveyor belts with middle chain links are available.
